Receiving Card MRV366

Product No : MRV366

Update Time : 22 April 2020

฿0.00

Overview

The MRV366 is a new receiving card developed by NovaStar. A single MRV366 loads up to 512×256 pixels.
The MRV366 supports pixel level brightness and chroma calibration, which effectively removes color discrepancies, greatly improves LED display image consistency, and presents finer displays to users.
On-site setup, operation, and maintenance were all taken into account when designing the hardware and software of the MRV366, allowing for an easier setup, more stable operation, and more efficient maintenance.

Hardware design:
 Integrates 16 standard HUB75 connectors, which makes the HUB board unnecessary.

 Adopts the Gigabit Ethernet port, which can connect to the PC.

Software design:

 Supports pixel level brightness and chroma calibration.

 Supports setting of pre-stored image in the receiving card.

 Supports status detection of temperature, voltage, Ethernet cable communication and video source signals.

 Supports 5-pin LCD module.

Availability: In stock

Qty:

Specifications
Dimension
Light Distribution
Photometric Diagram
Other

รหัสสินค้า	MRV366	คุณสมบัติของสินค้า	Pixel level brightness and chroma calibration : Brightness and chroma calibration in NovaLCT for each pixel can remove color discrepancies effectively, make the brightness and chroma of the whole screen highly consistent, and improve the display effect. Supports setting of prestored image in the receiving card. : In NovaLCT, a specified image can be set as the LED screen startup image or as the image to be displayed on LED screen when the Ethernet cable is disconnected or no video source signal is available. Status detection of temperature, voltage, Ethernet cable communication and video source signals : In NovaLCT, the status of receiving card's temperature, voltage, Ethernet cable communication and video source signals can be detected. Supports LCD module. : Supports NovaStar's general 5-pin LCD module. The LCD module is connected to the HUB board to display temperature, voltage, single operating time and total operating time of the receiving card. Readback of configuration file :In NovaLCT, the configuration information stored in the receiving card can be read back. Readback of firmware version : In NovaLCT, the firmware versions of the receiving card can be read back.
ตัวชี้วัด	Flashes every other 1s. : No sending card mode: The receiving card works normally with no sending card connected. Ethernet cable connection is normal, and video source input is available. Flashes every other 0.5s. : Sending card mode: Both the receiving card and the sending card work normally. Ethernet cable connection is normal, and video source input is available. Flashes every other 3s. : The receiving card works normally while the Ethernet cable connection is abnormal. Rapidly flashes for 3 times every other 3s. : The receiving card works normally and Ethernet cable connection is normal, while no video source input is available. Rapidly flashes every other 0.2s. : Program loading fails in normal operating and the device is coming to the backup operating state. Always on : The indicator will be always on after the power is on.	อินเทอร์เฟซข้อมูล	GND / 16 15 HOE HLAT / 14 13 HDCLK HD / 12 11 HC HB / 10 9 HA HE / 8 7 B G / 6 5 R GND / 4 3 B G / 2 1 R
แรงดันไฟฟ้าเข้า	DC 3.3 V–5.0 V	พิกัดกระแสของมอเตอร์ดีซี	0.5 A
ความเข้มของการส่องสว่าง	2.5 W	อุณหภูมิในการทำงาน	-20°C–70°C
อุณหภูมิใช้งานปกติ	-25°C –125°C	ความชื้นในการทำงาน	10% RH–90% RH

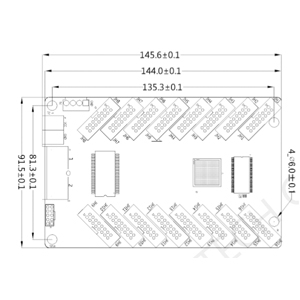

ขนาด	145.6 mm × 91.5 mm × 17.2 mm	น้ำหนักสุทธิ	100.1 g
มาตราฐานการรับรอง	RoHS, EMC Class A	การบรรจุ	An antistatic bag and anti-collision foam are prepared for each receiving card. Dimensions of the packing box: 650.0 mm x 500.0 mm x 200.0 mm, 100 receiving cards in each box.

no data to display

Downloads

MRV366-Receiving-Card-Product-Deion-V1.0.1
