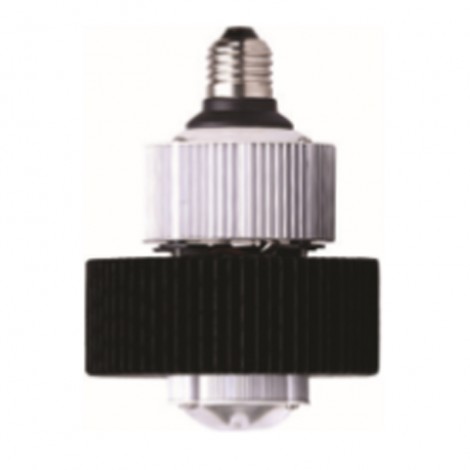

NEX Saturn LED Low bay 50W AC170-250V CRI80 6500K 85D E27 IP54

Product No : STLB000508658FE
Update Time : 22 April 2020
฿0.00

Feature

•  Citizen COB adopted, delivering 140 to 160 lumen per watt, converting more power to light.

•  Patented passive cooling solution to manage surface temperature rising of luminaire at 30°C, junction temperature of led chip controlled at 100°C.

•  Optical glass led lens with a light transmission more than 99%, offering the least light output loss, special rectangle shape designed to have a symmetric beam patter.

•  50000 hours lifespan putting the luminaire replacement circle to 20 years.

•  IP66 (Excluded E27 and E40) water and dust proof, and aluminium alloy fixture with corrosion resistant.

•  Power factor at 0.9-0.99. •  Easiest installation and maintenance, each part is replaceable.

•  3 years warranty.

•  CE, FCC, RoHS and TISI marked.

Availability: In stock

Qty:
รหัสสินค้า STLB000508658FE กําลังวัตต์ 50W
ชิปของหลอดไฟ Citizen COB ประสิทธิภาพของแอลอีดี ≥140 lm/W
ประสิทธิภาพการส่องสว่าง 90-100Lm/W ความเข้มของการส่องสว่าง ≥5500Lm
อุณหภูมิสี Warm white (3000K±300) Natural white (4500K±400) Cool white (6500K±500) ค่าความถูกต้องของแสง ≥80
มุมกระจายแสง 45°, 65°, 85°, 120° วัสดุของเลนส์ Optical glass
แสงส่งผ่านเลนส์ 93% มาตรฐานการป้องกันน้ำและฝุ่น IP54, IP65 (Optional)

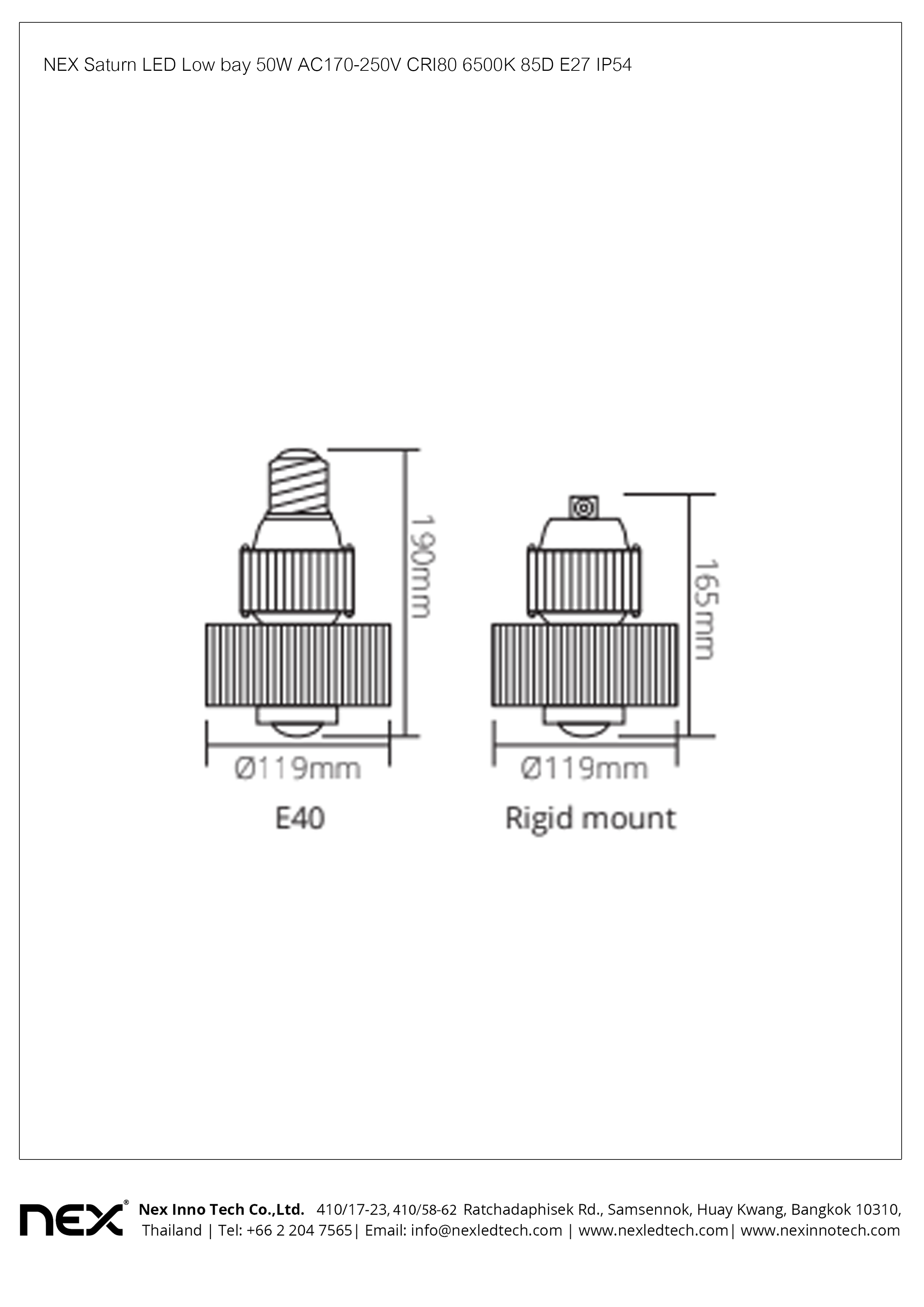

อัตราการแทนที่ 150W HID ขนาด 190x119mm, 165x119mm
ปลายขั้วหลอดไฟฟ้า E40/ Rigid mount น้ำหนัก 0.98 KG
วัสดุมาตราฐาน Aluminum alloy สีมาตราฐาน Aluminum color
อุณหภูมิใช้งานปกติ -25°C to 45°C ค่าความชื้นสัมพัทธ์ 10% to 90%
ระยะเวลาการใช้งาน 50000 Hrs การรับประกัน 3 Years*
แรงดันไฟฟ้าเข้า AC 170-250V ความถี่ 50/60Hz
กระแสไฟฟ้าขาออก 0.23A ค่าตัวประกอบกำลังไฟฟ้า ≥0.95
ประสิทธิภาพของพลังงาน 85%-90% ความผิดเพี้ยนของกระแส ≤10%
ป้องกันไฟกระชากแรงดันสูง 2kA มาตราฐานการรับรอง CE,RoHS,FCC,TISI
ผลการทดสอบ LM80/TM21
